Enclosed Type Power Supply
| Series | Outputs | Input Voltage | Wattage | PFC | Safety Standard | Warranty | Feature | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
NEWHFA
|
1 | 180-528VAC 3Φ |
3500W | OK |  |
 |
 |
 |
 |
5YR |
･Low profile: 1U (41mm) ･Universal three-phase input range: 180-528VAC (supports both 200VAC and 400VAC) ･Complies with SEMI F47 ･High efficiency: up to 94% ･Parallel operation: Connect up to 10 units for a total output of 31.5kW ･Series operation: Achieve a maximum output of 400V with 65V output voltage Model No.: HFA3500TF Country of Manufacturing: Japan |
|
NEWUMCS
|
1 | 85-264ACV 1Φ |
30-60W | ー | |
|
|
|
|
5YR |
･Medical isolation grade 2MOPP ･Low leakage current ･Suitable for BF applications ･ system design available ･5-year warranty Model No.: UMCS30F, UMCS60F Country of Manufacturing: China |
|

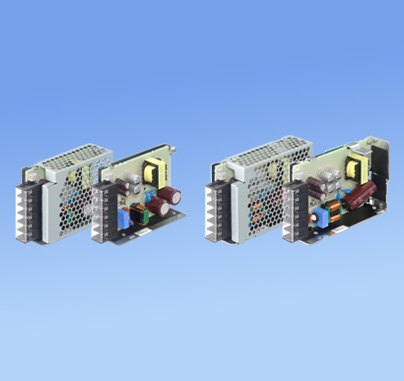

NEWPDA
|
1 | 85-264VAC 1Φ |
15-50W | ー | |
|
|
|
|
5YR |
･Identical case size and mounting dimensions as PBA series, making it easy to replace ･High efficiency ･Low ripple ･Wide operating ambient temperature range ･Compliant with SEMI F47 Model No.: PDA15F, PDA30F, PDA50F Country of Manufacturing: China |
|
NEWHCA
|
1 | 180 - 528VAC 3Φ |
3500W | OK | |
|
|
|
|
5YR |
･Water-cooling available (conduction-cooling) ･Universal three-phase 180-528VAC input range (can deal with both 200VAC and 400VAC input voltage) ･Optional cold plate ･Low profile 1.5U (65mm) ･High efficiency 94% max ･Up to 10 pieces can be connected in parallel operation to achieve 31.5KW output ･65V output voltage available and a maximum output of 400V with series operation Model No.: HCA3500TF Country of Manufacturing: Japan |
|
NEWWBA
|
1 | AC170-305V 1Φ |
35-350W | — | |
|
|
|
|
5YR |
･Wide input range 170-305VAC ･Low profile: 30mm height ･Safety approval IEC62368-1 ･Long lifetime, high reliability ･Economical design ･Operating altitude up to 5000 meters ･Complies with SEMI F47 Model No.: WBA35B, WBA75B, WBA150B, WBA350B Country of Manufacturing: China |
|
NEWPCA
|
1 | AC85-264V 1Φ |
300W, 600W, 1000W, 1500W | OK | |
|
|
|
|
5YR |
･High efficiency 94% max ･Low profile 1U (41mm, 1.61inch=meet to 1U height) ･Universal input 85 - 264VAC ･Medical approvals (ANSI/AAMI ES60601-1, EN60601-1 3rd) ･Constant current regulation ･Output voltage can be varied to near 0V ･Communication ports for remote monitoring and remote control ･Convenient alarm signals ･With AUX output (5V/12V selectable) ･Parallel operation or N+1 redundant operation Model No.: PCA300F, PCA600F, PCA1000F, PCA1500F Country of Manufacturing: Japan |
|
PJA
|
1 | AC85-264V 1Φ |
100-1500W | OK | |
|
|
|
|
5YR |
･Economical design ･Wide temperature range (-20℃ to +70℃, Derating is required) ･Harmonic attenuator (Complies with IEC61000-3-2 Class A) ･Universal input (AC85-264V, Derating is required) ･Various option ･Compact design 25% smaller (Compared with PBA series) Low power consumption (1.5W typ AC240Vin at no load) Optional connector (Vertical terminal block, Header connector) ･Low profile design PJA100F, 150F, 300F (1U size) PJA600F, 1000F, 1500F (2U size) ･The fan stops or runs at a low speed at no load（PJA1000F and PJA1500F） ･Complies with SEMI F-47 Model No.: PJA100F, PJA150F, PJA300F, PJA600F, PJA1000F, PJA1500F Country of Manufacturing: China |
|
PLA
|
1 | AC85-264V 1φ |
15-600W | OK | |
 |
|
|
|
5YR |
･Low Profile ･Wide temperature range (-20C to +70C, Derating is required) ･Harmonic attenuator (Complies with IEC61000-3-2 class A) ･Universal input (AC85 - 264V, Derating is required) ･Low power consumption at no load ･Screw hold type terminal block (Only PLA300 and PLA600) ･Complies with SEMI F-47 (Option-U) Model No.: PLA15F, PLA30F, PLA50F, PLA100F, PLA150F, PLA300F, PLA600F Country of Manufacturing: China |
|
NEWFETA
|
1 | AC170-264V1φ |
2500W, 3000W, 7000W | OK | |
|
|
|
|
3YR |
･High power density ･Low profile and meet to 1U height ･High efficiency ･Three-phase 380V input high power (FETA7000ST) ･No series operation setting is required for high output voltage 144V (FETA7000ST) ･Adjustable output voltage from 0V to 158.4V by using TRM (FETA7000ST) ･Harmonic attenuator (Complies with IEC61000-3-2 classA) ･Complies with SEMI F47 ･Parallel Operation / Parallel Redundancy Operation ･Alarm signals, Remote ON / OFF and other functions Model No.: FETA2500BA (1φ220V), FETA3000BA (1φ220V), FETA7000ST (3φ380V) Country of Manufacturing: Japan |
|
SC
|
1 | AC160-264V3φ |
10000W | OK | |
|
|
|
|
3YR |
･High power, AC-DC front end power supply ･Three-phase input(AC160 - 264V 3φ) ･High efficiency (90%), High power factor (0.99) ･Complies with SEMI F47 ･Wide output voltage adjustable range approximately 0 to 52.8V (Optional) ･Constant current regulation provided with additional external components (Optional) ･Parallel operation and Parallel redundancy operation (SCHA10000T) ･System ON / OFF (Remote ON / OFF) ･Alarms ･Output Voltage Monitor ･Parallel Control (Start in / out) ･Remote Signal ON / OFF Model No.: SCHA10000T, SCDA10000T Country of Manufacturing: Japan |
|
PBA
|
1 | AC85-264V 1φ |
10-1500W | OK | |
|
|
|
|
5YR |
･Universal input (AC85 - 264V) : PBA1500T(AC170 - 264V 3φ) ･Parallel operation and Parallel redandancy operation (PBA300F - 1500F, PBA1500T) ･Fan alarm, Remote ON/OFF and other functions (PBA300F - 1500F, PBA1500T) Model No.: PBA10F, PBA15F, PBA30F, PBA50F, PBA75F, PBA100F, PBA150F, PBA300F, PBA600F, PBA1000F, PBA1500F, PBA1500T Country of Manufacturing: Japan |
|
PBW
|
2 | AC85-264V 1φ |
15-50W | OK | |
|
|
|
|
5YR |
･2 outputs of PBA series. Model No.: PBW15F, PBW30F, PBW50F Country of Manufacturing: Japan |
|
ADA
|
1 | AC85-264V 1φ |
600-1000W | OK | |
|
|
|
|
5YR |
･Peak power operation available ･Fan optional ･Parallel operation/master-slave operation/N+1 redundant (optional) ･Optional : remote ON/OFF, alarms ･Current monitor ･DIN rail (35mm) optional Model No.: ADA600F, ADA750F, ADA1000F Country of Manufacturing: Japan |
|
FCA
|
1 | AC187-528V1φ |
50-200W | OK | |
|
|
|
|
3YR |
･High input voltage (AC187V- 528V) ･Peak current function Model No.: FCA50F, FCA75F, FCA200F Country of Manufacturing: Japan |
|
AC380V 3φ Input Power Supply
| Series | Outputs | Input Voltage | Wattage | PFC | Safety Standard | Warranty | Feature | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NEWFETA
|
1 | AC170-264V1φ |
2500W, 3000W, 7000W | OK | |
|
|
|
|
3YR |
･High power density ･Low profile and meet to 1U height ･High efficiency ･Three-phase 380V input high power (FETA7000ST) ･No series operation setting is required for high output voltage 144V (FETA7000ST) ･Adjustable output voltage from 0V to 158.4V by using TRM (FETA7000ST) ･Harmonic attenuator (Complies with IEC61000-3-2 classA) ･Complies with SEMI F47 ･Parallel Operation / Parallel Redundancy Operation ･Alarm signals, Remote ON / OFF and other functions Model No.: FETA2500BA (1φ220V), FETA3000BA (1φ220V), FETA7000ST (3φ380V) Country of Manufacturing: Japan |
|
CVCC Power Supply
| Series | Outputs | Input Voltage | Wattage | PFC | Safety Standard | Warranty | Feature | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NEWPCA
|
1 | AC85-264V 1Φ |
300W, 600W, 1000W, 1500W | OK | |
|
|
|
|
5YR |
･High efficiency 94% max ･Low profile 1U (41mm, 1.61inch=meet to 1U height) ･Universal input 85 - 264VAC ･Medical approvals (ANSI/AAMI ES60601-1, EN60601-1 3rd) ･Constant current regulation ･Output voltage can be varied to near 0V ･Communication ports for remote monitoring and remote control ･Convenient alarm signals ･With AUX output (5V/12V selectable) ･Parallel operation or N+1 redundant operation Model No.: PCA300F, PCA600F, PCA1000F, PCA1500F Country of Manufacturing: Japan |
|
Open Frame Type Power Supply
| Series | Outputs | Input Voltage | Wattage | PFC | Safety Standard | Warranty | Feature | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
NEWTECS
|
1 | 85-264VAC 1Φ |
45-65W | OK | |
|
|
|
|
5YR |
･Ultra-compact 1”×3” footprint ･Low standby power consumption of 0.2W ･2 types of interfaces ･Low leakage current ･No need of FG connection (ClassⅡ system) Model No.: TECS45F, TECS65F Country of Manufacturing: Japan |
|
NEWLHP
|
1 | AC85-264V 1Φ |
150-300W | OK | |
|
|
|
|
|
5YR |
･200% peak power ･Universal input 85 - 264VAC ･Low profile and compact size ･High efficiency and low noise ･Approved with EN62477-1 OVC Ⅲ ･Built-in inrush current, overcurrent and overvoltage protection circuits Model No.: LHP150F, LHP300F Country of Manufacturing: China |
NEWLHA
|
1 | AC85 - 264V 1Φ |
10 - 300W | OK | |
|
|
|
|
|
5YR |
･Low profile and compact size ･High efficiency ･Low noise ･Universal input 85 - 264VAC ･Approved for EN62477-1 OVC Ⅲ ･Built-in inrush current, overcurrent and overvoltage protection circuits Model No.: LHA10F, LHA15F, LHA30F, LHA50F, LHA75F, LHA100F, LHA150F, LHA300F Country of Manufacturing: China |
LFP
|
1 | AC85-264V 1φ |
100-300W | OK | |
|
|
|
|
5YR |
･Peak power operation available ･Low power consumption at no load (Optional) Model No.: LFP100F, LFP150F, LFP240F, LFP300F Country of Manufacturing: Japan |
|
LFA
|
1 | AC85-264V 1φ |
10-300W | OK | |
|
|
|
|
5YR |
･Universal input (AC85-264V) ･Power factor correction (LFA50F-300F) ･Built-in low standby power consumption function (Standard: 10, 15W Optional: 100, 150, 240, 300W) Model No.: LFA10F, LFA15F, LFA30F, LFA50F, LFA75F, LFA100F, LFA150F, LFA240F, LFA300F Country of Manufacturing: Japan |
|
LGA
|
1 | AC85-132V 1φ |
50-240W | OK | |
|
|
|
|
5YR |
･Built-in inrush current, overcurrent and overvoltage protection circuits Model No.: LGA50A, LGA75A, LGA100A, LGA150A, LGA240F Country of Manufacturing: Japan |
|
DIN Rail Type Power Supply
| Series | Outputs | Input Voltage | Wattage | PFC | Safety Standard | Warranty | Feature | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
NEWWDA
|
1 | AC85-264V 1Φ |
30-90W | － | |
|
|
|
|
5YR |
･Space-saving, DIN (35mm) rail type (Basic function series) ･Wide operating ambient temperature range –20°C to +70°C max (derating required) ･Flexible output voltage adjustment of ±10% by the Trimpot ･DC-OK LED indicator for easy system diagnostics ･5V is available for 30W ･5-year warranty with economical design Model No.: WDA30F, WDA60F, WDA90F Country of Manufacturing: China |
|
KH
|
1 | AC85-264V 1φ |
30-480W | OK | |
|
|
|
|
5YR |
･DIN (35mm) rail type (Full function series) ･Attachment available with DIN EN60715 ･TH35 (35×7.5mm) (Top hat shaped DIN rail) ･Convection cooling ･Wide operating ambient temperature range (Derating required) ･2 types of I/O terminal (Euro Style and Barrier Blocks Style) ･Built in overcurrent protection, overvoltage protection circuits -KHEA30F/60F/90F, KHNA30F/60F/90F Low power consumption at no load -KHEA120F/240F/480F, KHNA120F/240F/480F Built in remote ON/OFF ･Built in signal output for confirming output voltage ･Complies with SEMI F-47 Model No.: KHEA30F/KHNA30F, KHEA60F/KHNA60F, KHEA90F/KHNA90F, KHEA120F/KHNA120F, KHEA240F/KHNA240F, KHEA480F/KHNA480F Country of Manufacturing: China |
|
KL
|
1 | AC85-264V 1φ |
120-240W | OK | |
|
|
|
|
5YR |
･DIN (35mm) rail type (Basic function series) ･Attachment available with DIN EN60715 ･TH35 (35×7.5mm) (Top hat shaped DIN rail) ･Convection cooling ･Wide operating ambient temperature range (Derating required) ･2 types of I/O terminal (Euro Style and Barrier Blocks Style) Harmonic attenuator (Complies with IEC61000-3-2 Class A) ･Built-in overcurrent and overvoltage protection circuits Model No.: KLEA120F/KLNA120F, KLEA240F/KLNA240F Country of Manufacturing: China |
|
KR
|
1 | DC10-30V |
Output current 20A, 40A | OK | |
|
|
|
|
5YR |
･DIN(35mm) rail type (Redundancy module) ･Attachment available with DIN EN60715 ･TH 35 (35 x 7.5 mm) (Top hat shaped DIN rail) ･Convection cooling ･Wide operating ambient temperature range (Derating required) ･Built in LED signal for confirming input voltage balance ･Built in relay signal for confirming input voltage Model No.: KRE-20A, KRE-40A Country of Manufacturing: China |
|
Configurable Power Supply
| Series | Outputs | Input Voltage | Wattage | PFC | Safety Standard | Warranty | Feature | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
RB
|
3 | AC85-264V 1φ |
200, 300W | OK | |
|
|
|
|
5YR |
・Configurable 3 isolated outputs ・Universal input 85 - 264VAC ・Meets OVC III (required in industrial application market, approved with EN62477-1 (OVC III) and complies with EN61558-2-16 (OVC III)） ・Meets ITE and telecommunication apparatus standards (UL62368-1 and EN62368-1 approved) ・Ideal for various robotics specifications ・High efficiency ・Reinforced isolation ・Various options Model No.: RBC200F, RBC300F Country of Manufacturing: Japan |
|
NEWAME
|
4-6 | AC85-264V 1φ |
400-1200W | OK | |
|
|
|
|
5YR |
・Flexible modular system architecture provides various output configuration ・ Medical approvals (ANSI/AAMI ES60601-1, EN60601-1 3rd, IEC60601-1-2 4th Ed.) ・Low profile 1U (41mm, 1.61inch=meet to 1U height) ・Universal input 85 - 264VAC ・Meets ITE standards (IEC62368-1) ・Start-up sequence available ・Connector type available ・Global Inhibit ・AUX (5V/1A) ・Remote ON/OFF control, alarm Model No.: AME400F(AM4), AME600F(AM6), AME800F(AM8), AME1200F(AM12) Country of Manufacturing: Japan |
|
ACE
|
4-6 | AC85-264V 1φ |
300-900W | OK | |
|
|
|
|
3YR |
･Flexible modular system architecture provides various output configuration ･Remote ON/OFF control, alarm Model No.: ACE300F(AC3), ACE450F(AC4), ACE650F(AC6), ACE900F(AC9) Country of Manufacturing: Japan |
|
PCB Mount Type Power Supply
| Series | Outputs | Input Voltage | Wattage | PFC | Safety Standard | Warranty | Feature | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
NEWUMPS
|
1 | 85-264ACV 1Φ |
30-60W | ー | |
|
|
|
|
5YR |
･Medical isolation grade 2MOPP ･Low leakage current ･Suitable for BF applications ･ system design available ･5-year warranty Model No.: UMPS30F, UMPS60F Country of Manufacturing: China |
|
NEWTEPS
|
1 | 85-264VAC 1Φ |
45-65W | OK | |
|
|
|
|
5YR |
･Ultra-compact 1”×3” footprint ･Low standby power consumption of 0.2W ･2 types of interfaces ･Low leakage current ･No need of FG connection (ClassⅡ system) Model No.: TEPS45F, TEPS65F Country of Manufacturing: Japan |
|
TUHS
|
1 | AC85-264V、 |
3-25W | OK | |
|
|
|
|
5YR |
･P.C.board mount AC-DC Converter ･Design flexibility for Hold-Up time and expected life ･Small size ･Built-in overcurrent and overvoltage protection circuits ･High efficiency by synchronous rectification technology (TUHS25) ･Not built-in aluminum and tantalum electrolytic capacitor Model No.: TUHS3, TUHS5, TUHS10, TUHS15, TUHS25 Country of Manufacturing: Japan |
|
Medical Power Supply
| Series | Outputs | Input Voltage | Wattage | PFC | Safety Standard | Warranty | Feature | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NEWUMPS
|
1 | 85-264ACV 1Φ |
30-60W | ー | |
|
|
|
|
5YR |
･Medical isolation grade 2MOPP ･Low leakage current ･Suitable for BF applications ･ system design available ･5-year warranty Model No.: UMPS30F, UMPS60F Country of Manufacturing: China |
|
| NEWUMCS
|
1 | 85-264ACV 1Φ |
30-60W | ー | |
|
|
|
|
5YR |
･Medical isolation grade 2MOPP ･Low leakage current ･Suitable for BF applications ･ system design available ･5-year warranty Model No.: UMCS30F, UMCS60F Country of Manufacturing: China |
|
NEWUMA
|
1 | AC85-264V 1Φ |
30-60W | ― | |
|
|
|
|
5YR |
･Medical isolation grade 2MOPP and input/output 4kVAC isolation ･5-year warranty ･Industry-standard 2”×3” footprint ･Medical safety approval IEC60601-1 3rd edition ･Low leakage current - suitable for BF applications ･ClassⅡ system design available ･Complies with EN60335 safety standard ･Low power consumption at no load of 0.2W Model No.: UMA30F, UMA60F Country of Manufacturing: China |
|
NEWAEA
|
1 | AC85-264V 1φ |
600-1000W | OK | |
|
|
|
|
5YR |
･Medical isolation grade 2MOPP and leakage current less than 0.3mA ･Low profile 1U (41mm) ･Safety approvals IEC62368-1, EN62477-1 (OVCⅢ), UL508 (option) and EN60601-1 3rd ･design, low noise ･3 times of peak power ･Complies with SEMI F47 Model No.: AEA600F，AEA800F，AEA1000F Country of Manufacturing: Japan |
|
NEWPJMA
|
1 | AC85 - 264V 1Φ |
300-1500W | OK | |
|
|
|
|
5YR |
･Medical isolation grade 2MOPP ･Economical design ･Wide operating temperature range (-20℃ to +70℃, derating is required) ･Harmonic attenuator (complies with IEC61000-3-2 class A) ･Universal input (AC85-264V, derating is required) ･Low power consumption at no load Model No.: PJMA300F, PJMA600F, PJMA1000F, PJMA1500F Country of Manufacturing: China |
|
NEWWMA
|
1 | AC85-264V 1Φ AC85-132V 1Φ |
35-350W | — | |
|
|
|
|
|
5YR |
･Medical isolation grade 2MOPP ･Safety approvals (IEC60601-1, IEC62368-1 and EN61558-2-16 OVC Ⅲ) ･Low profile 30mm ･Long lifetime, high reliability ･Economical design ･5-year warranty Model No.: WMA35F, WMA75F, WMA100F, WMA150H, WMA350H Country of Manufacturing: China |
| NEWAME
|
4-6 | AC85-264V 1φ |
400-1200W | OK | |
|
|
|
|
5YR |
・Flexible modular system architecture provides various output configuration ・ Medical approvals (ANSI/AAMI ES60601-1, EN60601-1 3rd, IEC60601-1-2 4th Ed.) ・Low profile 1U (41mm, 1.61inch=meet to 1U height) ・Universal input 85 - 264VAC ・Meets ITE standards (IEC62368-1) ・Start-up sequence available ・Connector type available ・Global Inhibit ・AUX (5V/1A) ・Remote ON/OFF control, alarm Model No.: AME400F(AM4), AME600F(AM6), AME800F(AM8), AME1200F(AM12) Country of Manufacturing: Japan |
|
GMA
|
1 | AC85-264V 1Φ |
300W | OK | |
|
|
|
|
5YR |
・ 2"X4" standard footprint ・ High efficiency 93% typ (AC230V, DC24Vout) ・ The industry's highest power density, 300W in 2"X4" (Forced air cooling) ・ Less than 1U high ・ Low leakage current and enforced high isolation ・ Suitable for medical electric equipment (ANSI/AAMI ES60601-1, EN60601-1 3rd, IEC60601-1-2 4th Ed.) ・ Design for BF application (Output-FG: 1MOPP, Input-Output: 2MOPP) ・ With AUX1 (12V), AUX2 (5V) (option) ・ With Remote (Option) Model No.: GMA300F Country of Manufacturing: Japan |
|
| NEWPCA
|
1 | AC85-264V 1Φ |
300W, 600W, 1000W, 1500W | OK | |
|
|
|
|
5YR |
･High efficiency 94% max ･Low profile 1U (41mm, 1.61inch=meet to 1U height) ･Universal input 85 - 264VAC ･Medical approvals (ANSI/AAMI ES60601-1, EN60601-1 3rd) ･Constant current regulation ･Output voltage can be varied to near 0V ･Communication ports for remote monitoring and remote control ･Convenient alarm signals ･With AUX output (5V/12V selectable) ･Parallel operation or N+1 redundant operation Model No.: PCA300F, PCA600F, PCA1000F, PCA1500F Country of Manufacturing: Japan |
|
NEWGHA
|
1 | AC90-264V 1φ / AC85-264V 1φ |
300-700W | OK | |
|
|
|
|
5YR |
･Wattage 700Wmax ･Conduction cooling (GHA500F, GHA700F) ･3"X5"standard footprint ･Less than 1U high ･For medical electric equipment ･Low leakage current ･With Remote (Option) ･With AUX1(5V), AUX2(12V) (Option) ･With Fan (Optional: -SNF) Model No.: GHA300F, GHA500F, GHA700F, GHA300F-SNF, GHA500F-SNF Country of Manufacturing: Japan |
|
LMA
|
1 | AC85-264V 1φ |
100-240W | OK | |
|
|
|
|
5YR |
･For medical electric equipment ･Internal dual fuses ･Low leakage current ･High power & peak power (option) ･Small and compact PCB construction ･Built-in inrush current, overcurrent and overvoltage protection circuits ･Harmonic attenuator (Complies with IEC61000-3-2 class A) Model No.: LMA100F, LMA150F, LMA240F Country of Manufacturing: Japan |
|
ACE-H
|
4-6 | AC85-264V 1φ |
300-900W | OK | |
|
|
|
|
3YR |
･Flexible modular system architecture provides various output configuration ･Remote ON/OFF control, alarm Model No.: ACE300F(AC3), ACE450F(AC4), ACE650F(AC6), ACE900F(AC9) Country of Manufacturing: Japan |
|
PMA
|
1 | AC85-264V 1φ |
15-100W | OK | |
|
|
|
|
5YR |
･For medical electric equipment ･Internal dual fuses ･Efficiency increased with synchronous rectification technology (PMA60F, PMA100F) Model No.: PMA15F，PMA30F，PMA60F，PMA100F Country of Manufacturing: Japan |
|
Power Module
| Series | Outputs | Input Voltage | Wattage | PFC | Safety Standard | Warranty | Feature | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TUXS
|
1 | AC85-264V 1φ |
150-200W | OK | |
|
|
|
|
5YR |
･AC-DC converter with PFC which is suitable for conduction cooling. ･Universal input voltage (AC85 - 264V) ･High density ･High reliability: not built-in aluminum and tantalum electrolytic capacitor ･Built-in overcurrent, overvoltage and thermal protection circuits ･High efficiency 94% (AC200V) Model No. : TUXS150F, TUXS200F Country of Manufacturing: Japan |
|
NEWTUNS
|
1 | AC85-264V 1φ |
50-1200W | OK | |
|
|
|
|
5YR |
･Wide input range AC85-264V (TUNS1200F: AC85-305V) ･Thin and small size ･Harmonic attenuator (Complies with IEC61000-3-2 class A) ･Built-in overcurrent, overvoltage and thermal protection circuits ･Parallel operation possible (TUNS700F and TUNS1200F) ･Medical approvals (TUNS1200F: ANSI/AAMI ES60601-1, EN60601-1 3rd) ･CVCC control (TUNS1200F) Model No.: TUNS50F, TUNS100F, TUNS300F, TUNS500F, TUNS700F, TUNS1200F Country of Manufacturing: Japan |
|
DPG
|
1 | AC85-264V1φ |
300-750W | OK | |
|
|
|
|
5YR |
･Harmonic attenuator (Complies with IEC61000-3-2) ･High efficiency 93% (AC100V), 96% (AC200V) ･Universal input voltage (AC85 - 264V) ･Built-in inrush current protection ･Built-in overvoltage and thermal protection circuits ･Enable signal (ENA) ･Auxiliary power supply for external signal (AUX) ･Ideal for distributed power systems Model No.: DPG500, DPG750 Country of Manufacturing: Japan |
|
DPF
|
1 | AC85-264V1φ |
1000-1500W | OK | |
|
|
|
|
5YR |
･Harmonic attenuator (Complies with IEC61000-3-2) ･High efficiency 90% (AC100V), 95% (AC200V) ･Universal input voltage (AC85 - 264V) ･Built-in inrush current protection ･Parallel operation is possible (Built-in current balancing function) ･Built-in overvoltage and thermal protection circuits ･Inverter operation monitoring (IOG) ･Enable signal (ENA) ･Auxiliary power supply for external signal (AUX) ･Ideal for distributed power systems Model No.: DPF1000 Country of Manufacturing: Japan |
|
Value-added Power Supply
| Series | Outputs | Input Voltage | Wattage | PFC | Safety Standard | Warranty | Feature | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
SNTU
|
1 | AC85-264V 1φ |
50-100W | OK | |
|
|
|
|
3YR |
･AC-DC converter, SNTUNS50/100F series includes TUNS50/100F series. Model No.: SNTUNS50, SNTUNS100 Country of Manufacturing: Japan |
|
SNDPF
|
1 | AC85-264V1φ |
1000-1500W | OK | |
|
|
|
|
3YR |
･Compact AC-DC Converter, SNDPF series includes DPF series Model No.: SNDPF1000 Country of Manufacturing: Japan |
|
SNDPG
|
1 | AC85-264V1φ |
500-750W | OK | |
|
|
|
|
3YR |
･Compact AC - DC Converter, SNDPG series includes DPG series ･Conduction cooling (e.g. heat radiation from the aluminum base plate to the attached heat sink) Model No.: SNDPG750 Country of Manufacturing: Japan |
|
