> 제품 > AC-DC Power Supply

Enclosed Type Power Supply

Series Outputs Input Voltage Wattage PFC Safety Standard Warranty Feature
NEWPCA 1

AC85-264V 1Φ

600W OK 5YR ・High efficiency 94% max
・Low profile 1U (41mm, 1.61inch=meet to 1U height)
・Universal input 85 - 264VAC
・Medical approvals (ANSI/AAMI ES60601-1, EN60601-1 3rd)
・Constant current regulation
・Output voltage can be varied to near 0V
・Communication ports for remote monitoring and remote control
・Convenient alarm signals
・With AUX output (5V/12V selectable)
・Parallel operation or N+1 redundant operation

Model No.: PCA600F

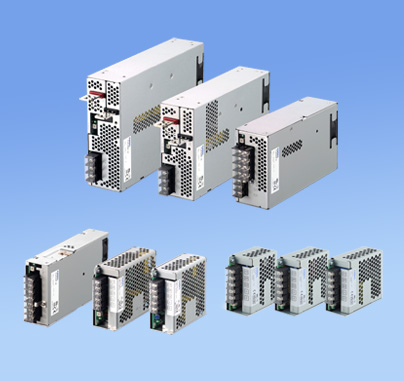

NEWPJA 1

AC85-264V 1Φ

100-1500W OK 5YR ・Economical design
・Wide temperature range (-20℃ to +70℃, Derating is required)
・Harmonic attenuator (Complies with IEC61000-3-2 Class A)
・Universal input (AC85-264V, Derating is required)
・Various option
・Compact design 25% smaller (Compared with PBA series)
Low power consumption (1.5W typ AC240Vin at no load)
Optional connector (Vertical terminal block, Header connector)
・Low profile design
PJA100F, 150F , 300F (1U size)
PJA600F, 1000F, 1500F(2U size)
・Complies with SEMI F-47

Model No.: PJA100F, PJA150F, PJA300F, PJA600F, PJA1000F, PJA1500F
NEWPLA 1

AC85-264V 1φ

15-600W OK 5YR ・Low Profile
・Wide temperature range (-20C to +70C, Derating is required)
・Harmonic attenuator (Complies with IEC61000-3-2 class A)
・Universal input (AC85 - 264V, Derating is required)
・Low power consumption at no load
・Screw hold type terminal block (Only PLA300 and PLA600)
・Complies with SEMI F-47 (Option-U)

Model No.: PLA15F, PLA30F, PLA50F, PLA100F, PLA150F, PLA300F, PLA600F
NEWFETA 1

AC170-264V1φ

2500W OK 3YR ・High power density (1.76W/cm3 FETA2500BA-48)
・Low profile (41mm, 1.61 inch = meet to 1U height)
・High efficiency (92.5%typ FETA2500BA-48, AC230Vin, 50% load)
・Harmonic attenuator (Complies with IEC61000-3-2 classA)
・Complies with SEMI F47
・Parallel Operation / Parallel Redundancy Operation
・Alarm signals, Remote ON / OFF and other functions

Model No.: FETA2500BA
SC 1

AC160-264V3φ

10000W OK 3YR ・High power, AC-DC front end power supply
・Three-phase input(AC160 - 264V 3φ)
・High efficiency (90%), High power factor (0.99)
・Complies with SEMI F47
・Wide output voltage adjustable range approximately 0 to 52.8V (Optional)
・Constant current regulation provided with additional external components (Optional)
・Parallel operation and Parallel redundancy operation (SCHA10000T)
・System ON / OFF (Remote ON / OFF)
・Alarms
・Output Voltage Monitor
・Parallel Control (Start in / out)
・Remote Signal ON / OFF

Model No.: SCHA10000T, SCDA10000T
PBA 1

AC85-264V 1φ

10-1500W OK 5YR ・Universal input (AC85 - 264V) : PBA1500T(AC170 - 264V 3φ)
・Parallel operation and Parallel redandancy operation (PBA300F - 1500F, PBA1500T)
・Fan alarm, Remote ON/OFF and other functions (PBA300F - 1500F, PBA1500T)

Model No.: PBA10F, PBA15F, PBA30F, PBA50F, PBA75F, PBA100F, PBA150F, PBA300F, PBA600F, PBA1000F, PBA1500F, PBA1500T
PBW 2

AC85-264V 1φ

15-50W OK 5YR ・2 outputs of PBA series.

Model No.: PBW15F, PBW30F, PBW30F
ADA 1

AC85-264V 1φ

600-1000W OK 5YR ・Peak power operation available
・Fan optional
・Parallel operation/master-slave operation/N+1 redundant (optional)
・Optional : remote ON/OFF, alarms
・Current monitor
・DIN rail (35mm) optional

Model No.: ADA600F, ADA750F, ADA1000F
FCA 1

AC187-528V1φ

50-200W OK 3YR ・High input voltage (AC187V- 528V)
・Peak current function

Model No.: FCA50F, FCA75F, FCA200F
STA 1

AC170-264V3φ

5000W OK 3YR ・Three-phase input.
・High wattage.
・Power factor corrected and DC48V output front-end power supplies.

Model No.: STA5000T

Open Frame Type Power Supply

Series Outputs Input Voltage Wattage PFC Safety Standard Warranty Feature
LFP 1

AC85-264V 1φ

100-300W OK 5YR ・Peak power operation available
・Low power consumption at no load (Optional)

Model No.: LFP100F, LFP150F, LFP240F, LFP300F
LFA 1

AC85-264V 1φ

10-300W OK 5YR ・Universal input (AC85-264V)
・Power factor correction (LFA50F-300F)
・Built-in low standby power consumption function (Standard: 10, 15W Optional: 100, 150, 240, 300W)

Model No.: LFA10F, LFA15F, LFA30F, LFA50F, LFA75F, LFA100F, LFA150F, LFA240F, LFA300F
LGA 1

AC85-132V 1φ

50-240W OK 5YR ・Built-in inrush current, overcurrent and overvoltage protection circuits

Model No.: LGA50A, LGA75A, LGA100A, LGA150A, LGA240F
LEP 1

AC85-264V 1φ

100-240W OK 2YR ・Peak current function.

Model No.: LEP100F, LEP150F, LEP240F
LEB 2

AC85-264V 1φ

100-225W OK 2YR ・Universal input voltage (AC85 - 264V)
・Remote ON/OFF (Option)

Model No.: LEB100F, LEB150F, LEB225F
LEA 1

AC85-264V 1φ

50-150W OK 2YR ・Open frame type power supplies for general purpose.

Model No.: LEA50F, LEA75F, LEA100F, LEA150F
LDA 1

AC85-264V 1φ

10-300W OK 2YR ・Open frame type power supplies for general purpose.

Model No.: LDA15F, LDA30F, LDA50F, LDA75F, LDA100W, LDA150W, LDA300W
LDC 3

AC85-264V 1φ

15-60W OK 2YR ・Universal input voltage (AC85 - 264V)
・Built-in inrush current, overcurrent and overvoltage protection circuits

Model No.: LDC15F, LDC30F, LDC50F

DIN Rail Type Power Supply

Series Outputs Input Voltage Wattage PFC Safety Standard Warranty Feature
NEWKH 1

AC85-264V 1φ
DC88-370V

30-480W OK 5YR ・DIN (35mm) rail type (Full function series)
・Attachment available with DIN EN60715
・TH35 (35×7.5mm) (Top hat shaped DIN rail)
・Convection cooling
・Wide operating ambient temperature range (Derating required)
・2 types of I/O terminal (Euro Style and Barrier Blocks Style)
・Built in overcurrent protection, overvoltage protection circuits
-KHEA30F/60F/90F, KHNA30F/60F/90F
 Low power consumption at no load
-KHEA120F/240F/480F, KHNA120F/240F/480F
 Built in remote ON/OFF
・Built in signal output for confirming output voltage
・Complies with SEMI F-47

Model No.: KHEA30F/KHNA30F, KHEA60F/KHNA60F, KHEA90F/KHNA90F, KHEA120F/KHNA120F, KHEA240F/KHNA240F, KHEA480F/KHNA480F
NEWKL 1

AC85-264V 1φ

120-240W OK 5YR ・DIN (35mm) rail type (Basic function series)
・Attachment available with DIN EN60715
・TH35 (35×7.5mm) (Top hat shaped DIN rail)
・Convection cooling
・Wide operating ambient temperature range (Derating required)
・2 types of I/O terminal (Euro Style and Barrier Blocks Style) Harmonic attenuator (Complies with IEC61000-3-2 Class A)
・Built-in overcurrent and overvoltage protection circuits

Model No.: KLEA120F/KLNA120F, KLEA240F/KLNA240F
NEWKR 1

DC10-30V
DC10-60V

Output current 20A, 40A OK 5YR ・DIN(35mm) rail type (Redundancy module)
・Attachment available with DIN EN60715
・TH 35 (35 x 7.5 mm) (Top hat shaped DIN rail)
・Convection cooling
・Wide operating ambient temperature range (Derating required)
・Built in LED signal for confirming input voltage balance
・Built in relay signal for confirming input voltage

Model No.: KRE-20A, KRE-40A

Configurable Power Supply

Series Outputs Input Voltage Wattage PFC Safety Standard Warranty Feature
MAX 4-8

AC85-264V1φ
AC170-264V3φ

1600-3200W OK 3YR ・Flexible modular system architecture provides various output configurations.
・Remote ON/OFF control, alarm, parallel operation

Model No.: MAX1600F(M1F), MAX1600T(M1T), MAX3200T(M3T)
ACE 4-6

AC85-264V 1φ

300-900W OK 3YR ・Flexible modular system architecture provides various output configuration
・Remote ON/OFF control, alarm

Model No.: ACE300F(AC3), ACE450F(AC4), ACE650F(AC6), ACE900F(AC9)

PCB Mount Type Power Supply

Series Outputs Input Voltage Wattage PFC Safety Standard Warranty Feature
NEWTUHS 1

AC85-264V、
DC120-370V

3-25W OK 5YR ・P.C.board mount AC-DC Converter
・Design flexibility for Hold-Up time and expected life
・Small size
・Built-in overcurrent and overvoltage protection circuits
・High efficiency by synchronous rectification technology (TUHS25)
・Not built-in aluminum and tantalum electrolytic capacitor

Model No.: TUHS3, TUHS5, TUHS10, TUHS15, TUHS25
VAF 1

AC85-264V 1φ

5-10W OK 3YR ・PCB Mount Type AC-DC Converter
・Built-in inrush current and overcurrent protection circuits

Model No.: VAF5, VAF10
VAA 1

AC85-132V 1φ

5-10W OK 2YR ・PCB Mount Type AC-DC Converter
・Built-in inrush current and overcurrent protection circuits

Model No.: VAA5,VAA10
YAS 1

AC85-264V 1φ

5-10W OK 2YR ・AC 100/200V input

Model No.: YAS5, YAS10
YAW 2

AC85-264V 1φ

5-10W OK 2YR ・2 outputs of YA series

Model No.: YAW5, YAW10

Medical Power Supply

Series Outputs Input Voltage Wattage PFC Safety Standard Warranty Feature
NEWPCA 1

AC85-264V 1Φ

600W OK 5YR ・High efficiency 94% max
・Low profile 1U (41mm, 1.61inch=meet to 1U height)
・Universal input 85 - 264VAC
・Medical approvals (ANSI/AAMI ES60601-1, EN60601-1 3rd)
・Constant current regulation
・Output voltage can be varied to near 0V
・Communication ports for remote monitoring and remote control
・Convenient alarm signals
・With AUX output (5V/12V selectable)
・Parallel operation or N+1 redundant operation

Model No.: PCA600F
NEWGHA 1

AC90-264V 1φ

300-500W OK 5YR ・Wattage 500Wmax
・Conduction cooling (GHA500F)
・3"X5"standard footprint
・Less than 1U high
・For medical electric equipment
・Low leakage current
・With Remote (Option)
・With AUX1(5V), AUX2(12V) (Option)
・With Fan (Optional: -SNF)

Model No.: GHA300F, GHA500F, GHA300F-SNF, GHA500F-SNF
LMA 1

AC85-264V 1φ

100-240W OK 5YR ・For medical electric equipment
・Internal dual fuses
・Low leakage current
・High power & peak power (option)
・Small and compact PCB construction
・Built-in inrush current, overcurrent and overvoltage protection circuits
・Harmonic attenuator (Complies with IEC61000-3-2 class A)

Model No.: LMA100F, LMA150F, LMA240F
ACE-H 4-6

AC85-264V 1φ

300-900W OK 3YR ・Flexible modular system architecture provides various output configuration
・Remote ON/OFF control, alarm

Model No.: ACE300F(AC3), ACE450F(AC4), ACE650F(AC6), ACE900F(AC9)
PMA 1

AC85-264V 1φ

15-100W OK 5YR ・For medical electric equipment
・Internal dual fuses
・Efficiency increased with synchronous rectification technology (PMA60F, PMA100F)

Model No.: PMA15F,PMA30F,PMA60F,
PMA100F

Power Module

Series Outputs Input Voltage Wattage PFC Safety Standard Warranty Feature
NEWTUXS 1

AC85-264V 1φ

150-200W OK 5YR ・AC-DC converter with PFC which is suitable for conduction cooling.
・Universal input voltage (AC85 - 264V)
・High density
・High reliability: not built-in aluminum and tantalum electrolytic capacitor
・Built-in overcurrent, overvoltage and thermal protection circuits
・High efficiency 94% (AC200V)

Model No. : TUXS150F, TUXS200F
NEWTUNS 1

AC85-264V 1φ

50-700W OK 5YR ・AC-DC Power Module Type Converter
・Harmonic attenuator (Complies with IEC61000-3-2 class A)
・Thin and small size
・Built-in overcurrent, overvoltage and thermal protection circuits
・Parallel operation (-P: TUNS700)

Model No.: TUNS50, TUNS100, TUNS300, TUNS500, TUNS700
DPG 1

AC85-264V1φ
AC170-264V1φ

300-750W OK 5YR ・Harmonic attenuator (Complies with IEC61000-3-2)
・High efficiency 93% (AC100V), 96% (AC200V)
・Universal input voltage (AC85 - 264V)
・Built-in inrush current protection
・Built-in overvoltage and thermal protection circuits
・Enable signal (ENA)
・Auxiliary power supply for external signal (AUX)
・Ideal for distributed power systems

Model No.: DPG500, DPG750
DPF 1

AC85-264V1φ
AC170-264V1φ

1000-1500W OK 5YR ・Harmonic attenuator (Complies with IEC61000-3-2)
・High efficiency 90% (AC100V), 95% (AC200V)
・Universal input voltage (AC85 - 264V)
・Built-in inrush current protection
・Parallel operation is possible (Built-in current balancing function)
・Built-in overvoltage and thermal protection circuits
・Inverter operation monitoring (IOG)
・Enable signal (ENA)
・Auxiliary power supply for external signal (AUX)
・Ideal for distributed power systems

Model No.: DPF1000

Value-added Power Supply

Series Outputs Input Voltage Wattage PFC Safety Standard Warranty Feature
SNTU 1

AC85-264V 1φ

50-100W OK 3YR ・AC-DC converter, SNTUNS50/100F series includes TUNS50/100F series.

Model No.: SNTUNS50, SNTUNS100
SNDPF 1

AC85-264V1φ
AC170-264V1φ

1000-1500W OK 3YR ・Compact AC-DC Converter, SNDPF series includes DPF series

Model No.: SNDPF1000
SPLFA 1

AC85-264V 1φ

30-150W OK 3YR ・Universal input (AC85-264V)
・Approved with DEN-AN (at AC100V-120V input)

Model No.: SPLFA30F, SPLFA50F, SPLFA75F, SPLFA100F, SPLFA150F
SNDPG 1

AC85-264V1φ
AC170-264V1φ

500-750W OK 3YR ・Compact AC - DC Converter, SNDPG series includes DPG series
・Conduction cooling (e.g. heat radiation from the aluminum base plate to the attached heat sink)

Model No.: SNDPG750
TopTop
